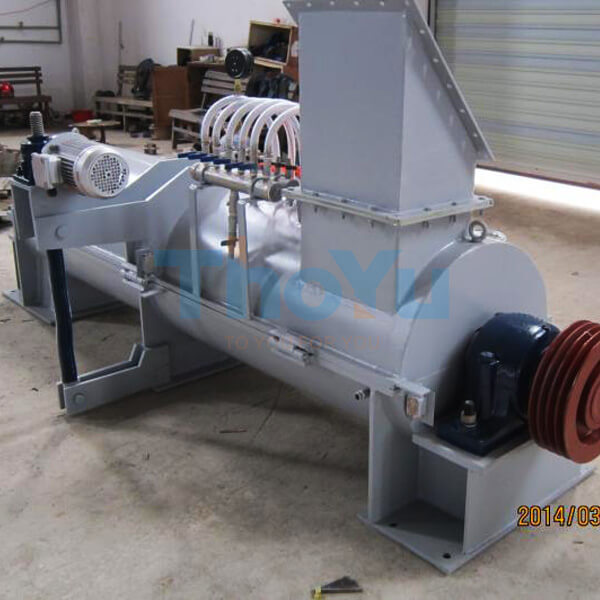

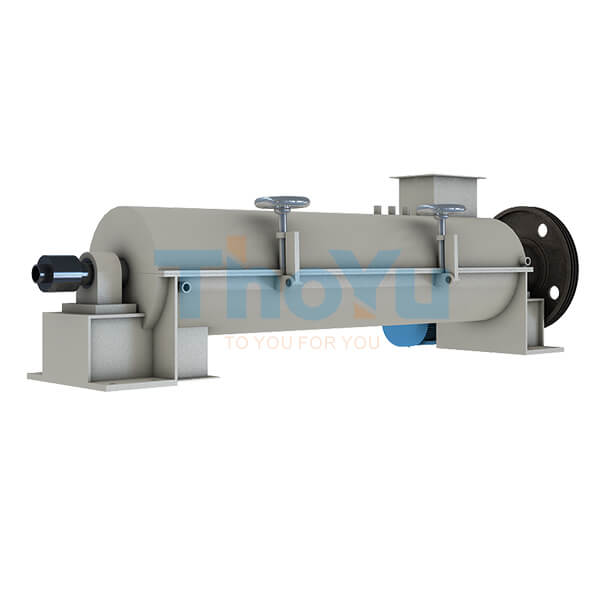

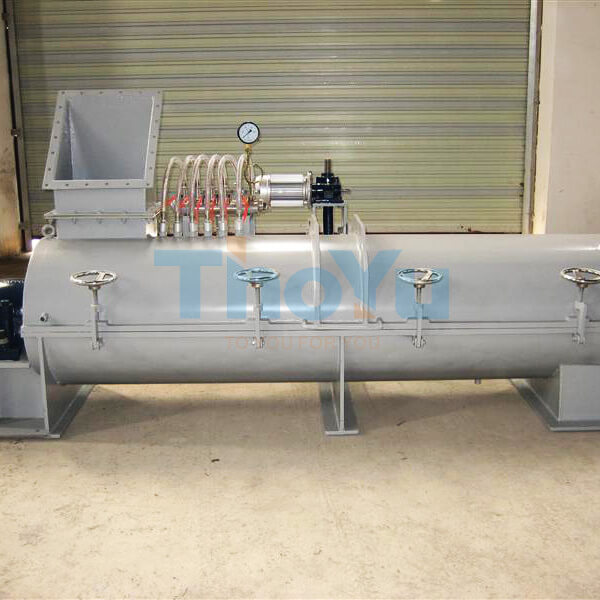

Ring Type Glue Mixing Machine

The ring type glue mixing machine is the latest generation of glue mixing equipment successfully developed by our company’s scientific research personnel based on the centrifugal glue mixing machine after years of practice. Ring type glue mixing machine can mix glue with the raw materials continuously. Ring type glue mixing machine is used in wood pallet block and molded wooden pallet production line.

Product Details

This glue mixing machine can be used for material mixing in the production of wooden particleboard, fiber particleboard, molded pallets, sawdust foot piers, bagasse boards and other products.

How Does Ring Type Glue Mixing Machine Work?
The measured raw materials continuously enter glue mixer from the feeding inlet. Under the action of the feeding shovel, the raw material accelerate in the circumferential direction to form the ring form and gradually moves to the sizing zone.

The mixed glue flows into the glue mixer in a tangential direction, and is mixed with the raw materials under the agitation of the stirring claws. Since the materials distributed in the radial direction have different linear velocities and there is a large difference in speed, the raw materials rub against each other to achieve a uniform sizing effect.

As the raw materials along the radial distribution have different line velocities and have large velocity difference, the raw materials rub against each other to achieve a uniform sizing effect.

Features of Ring Type Glue Mixing Machine

1. Ring type glue mixer mainly consists of mixing drum, mixing shaft, glue supplying system, feeding inlet, discharging outlet, and water cooling system.
2. Ring type glue mixer machine can mix glue with the raw materials continuously.
3. The ring type glue mixing machine is used in wood pallet block and molded wooden pallet production line.
4. Ring type glue mixer is easy to operate, so as to realize automatic management. And ring type glue mixing machine can mix glue with raw materials evenly and with good quality final materials. Besides, it also has high production efficiency. Hence, it is suitable for large-scale production.
5. Reasonable arrangement of the stirring claws, and large effective volume of the mixing inner cylinder, generates the low breakage rate.
6. Ring type glue mixer adopts spiral propeller type stirring structure, hence it can mix raw materials with glue evenly.
7. Ring type glue mixing machine employs compressed air or pump pressure sizing, so glue atomization effect is good. So it fundamentally solves the problem of gelation and uneven sizing, and also improves the quality of sizing. At the same time, it greatly reduces the amount of glue, and reduce the cost of production.
8. Glue mixer adopts the forced cooling cycle to improve the cooling effect, with the outstanding advantages of non-adhesive, no burning plastic and so on.
9. Both ends of the bearings use the latest type of installation, so it is very convenient to maintenance and replacement.

Specifications of Ring Type Glue Mixing Machine

Model Capacity(kg/h) Inner diameter(mm) Supporting scale(m3/a) Power(kW)
TYBS-140 250 Φ280 800-3000 7.5
TYBS-160 800 Φ320 3000-10000 11-15
TYBS-180 1200 Φ360 10000-15000 15-18.5
TYBS-200 1600 Φ400 15000-25000 22
TYBS-250 3200 Φ500 25000-50000 30
TYBS-300 7500 Φ600 50000-80000 45
TYBS-350 10000 Φ700 60000-120000 55
BS400 20000 Φ800 120000-200000 75
BS450 40000 Φ900 200000-400000 90
