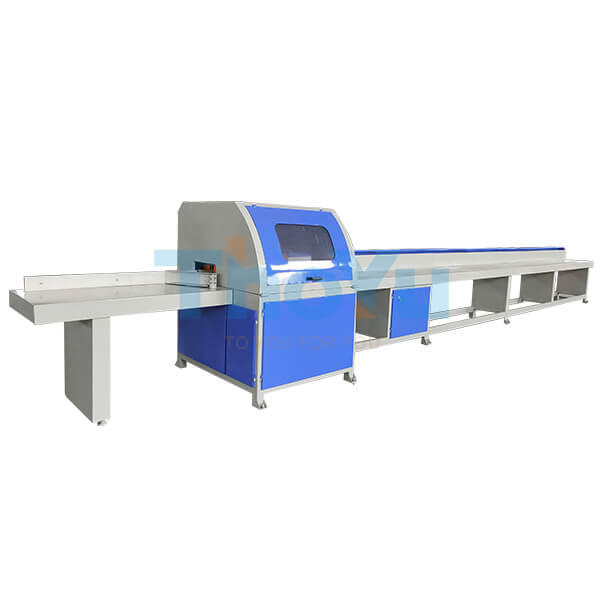

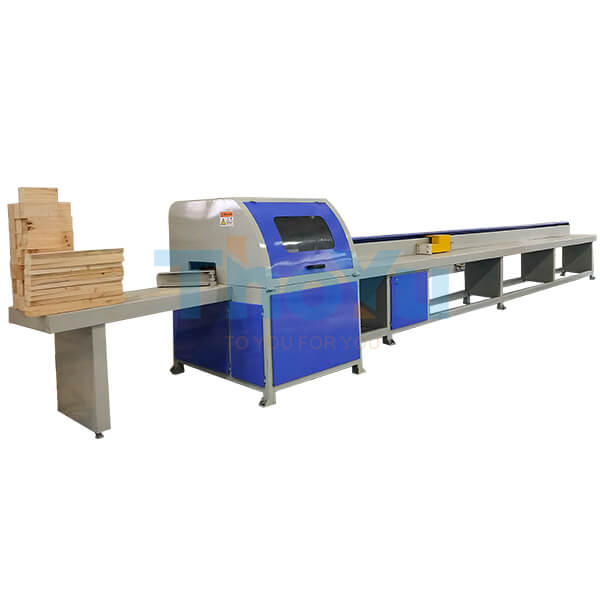

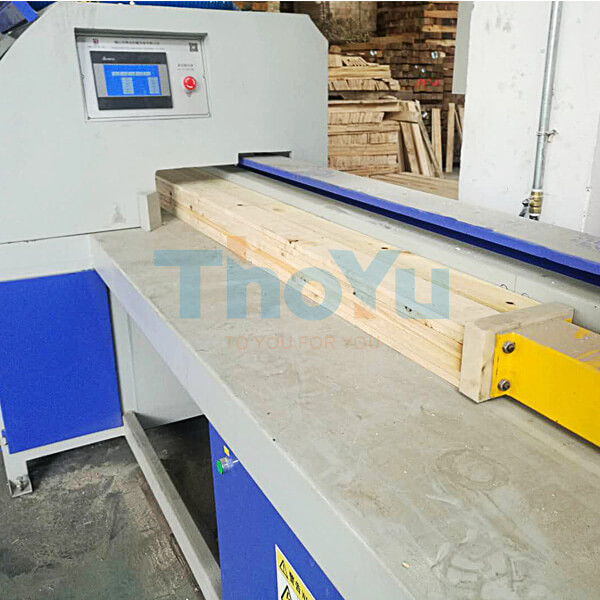

CNC Wood Saw

CNC wood saw is mainly used for the cutting process of pallets, pallet blocks, traditional cage wooden boxes, etc., and can also be used for the production of furniture parts. CNC wood saw have a lot of advantages with saw can save labor, improve efficiency, save time, and the rational management of materials in wood batch and standardized production.

Product Details

CNC wood saw is the computer program control wood cutting saw. And it is mainly used for the blanking process of pallet panels, pallet blocks, and traditional wooden boxes. Besides, CNC wood saw machine is also be used for the production of furniture components. Compared with the ordinary cutting process, ThoYu CNC wood cutting saw has great advantages, such as wood batch standardized production, fully utilizing raw materials, reducing on-duty personnel, improving production efficiency, rational managing of personnel, and ensuring product safety. Therefore, CNC wood timber saw can help you to save production costs, increase profits, and gain generous returns.

CNC wood saw is equipped with PLC control and reasonable calculation of length matching can greatly improve production efficiency and processing accuracy, and can improve raw material utilization.

CNC wood timber saw is controlled by a computer program. The production line can be optimized into the best cutting plan, through reasonable calculation and length matching. And it is cutting wood materials in a transverse way, which can greatly increase the production efficiency and processing precision. What’s more, wood electronic control saw also can replace the manual or traditional machine in production so as to meet the factory mass production requirements. Thus, it can solve the problem of low efficiency, high precision error, and difficult management in the production process.

Advantages of CNC Wood Saw

1. CNC wood saw is simple and flexible, and one worker can operate it.
2. High rate of output, reducing the amount of cutting losses.
3. Sawing pallet blocks rapidly; high precision.
4. Safety: The worker’s finger does not touch the blade, reducing the worker’s injury during the whole operation process.
5. Intelligent human-machine interface makes the operation extremely easy and efficient. And it also displays automatically that the abnormal information and troubleshooting instructions.
6. CNC wood saw also can set 5 sets of sawing parameters at a time, and automatic operation.

Technical Parameters of CNC Wood Saw

Model TYSJ-4000 TYSJ-5000
Workbench dimension 5000*700*980 mm 7000*700*980 mm
Max cut length 4000 mm 5000 mm
Max cut width 200 mm 200 mm
Saw blade diameter 500 mm 500 mm
Max cut thickness 100-160 mm 100-160 mm
Maximum speed of revolution 3500 rpm 3500 rpm
Motor power 7.5 kW 7.5 kW
Weight 950 kg 1100 kg
Overall dimension 7300*1200*1500 mm 9300*1200*1500 mm
