Cylinder Type Glue Mixer

The cylinder type glue mixer mainly to mixing glue and sawdust for further pressing, which is widely used in pallet block making and pressed wood pallet making, and so on.

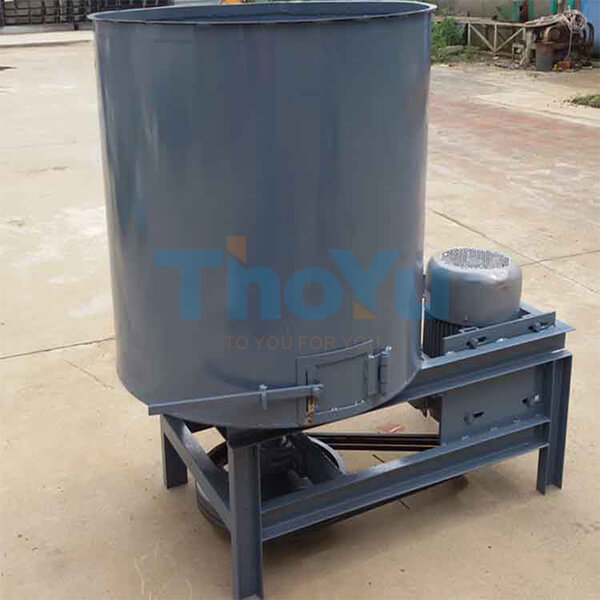

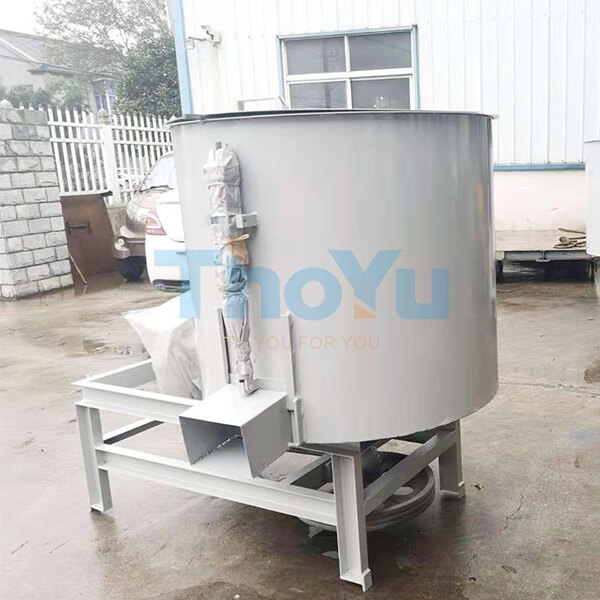

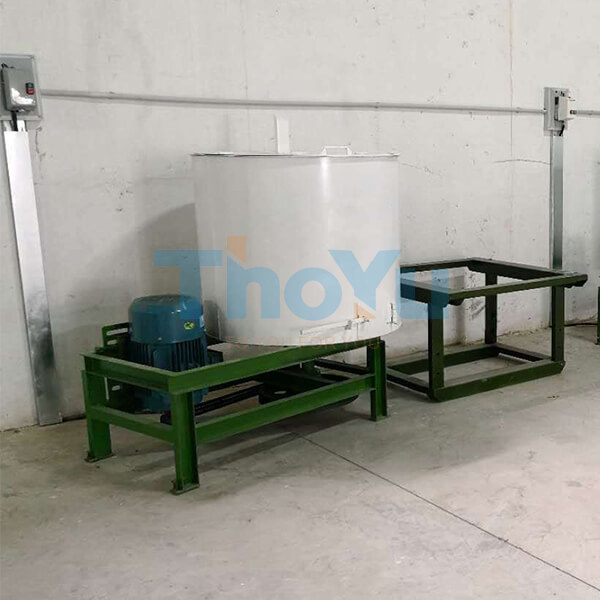

Cylinder type glue mixer machine is vertical type glue mixing machine. Put the material into the machines, while pour into the glue, then start the power, the blade will be clockwise rotation with the material together.

Product Details

Cylinder type glue mixer machine is used to mix materials with glues, which is the important equipment in the pressed pallet & pallet block production line.

The machine can be automated mixing with the automatic feeding device and unloading device, so it will reduce the dust pollution, protect workers’ safety, More importantly, it can greatly improve work efficiency.

How does Cylinder Glue Mixer Work?

Raw materials enter into the material barrel, and the blades drive the material to rotate clockwise along the inner wall of the barrel. At the same time, pour the mixed glue.

The material continuously cycle stirs in the cylinder in a full range, and are intertwined, through high-speed rotation, so as to achieve rapid mixing.

Applicable materials

The common mixed material is sawdust and wood shavings, The glue is normal glue, and it is UF (Urea-formaldehyde Resin) or PF (Phenolic Formaldehyde Resin).

Advantages of Cylinder Type Glue Mixer

1. Cylinder type glue mixer can mix materials and glue thoroughly and evenly.
2. Reasonable structure design, high efficiency, less waste, safeguard and low noises.
3. The mixing glue is normal glue, and it is UF (Urea-formaldehyde Resin) or PF (Phenolic Formaldehyde Resin). Commonly the ratio of the raw material to glue is 85:15.
4. Easy operate and maintenance, and one work can handle.
5. Open-top containers design, even mixing and easy to clean and maintenance.
6. High efficiency, Save labor and maintenance cost.
7. Low failure and long service life.
8. Widely applicable materials, such as: sawdust and wood shavings

Technical Parameters of Cylinder Type Glue Mixer

Cylinder Type Glue Mixer
Model TYTC-60L
Capacity 60 L
Power 7.5 kW
Mixing time 1-2 minutes / time
Mixing method forced mixing
Weight 300 kg
Dimension 1500*1300*1400 mm
