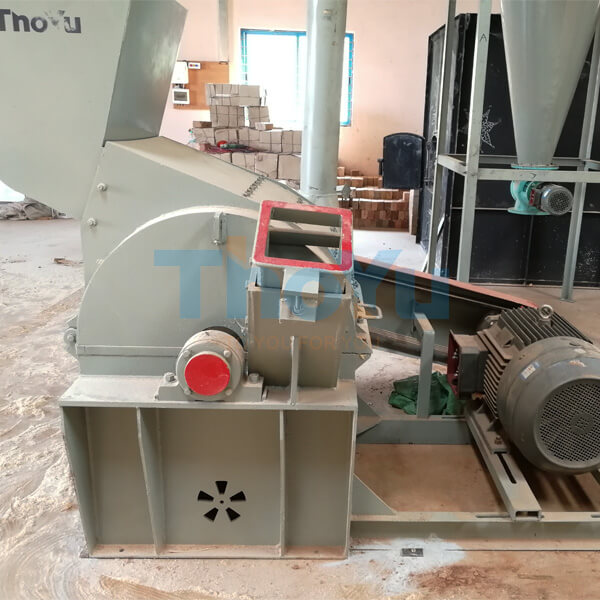

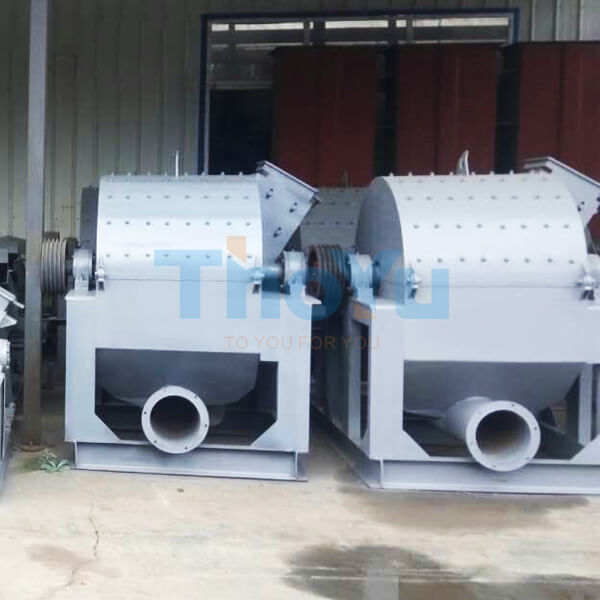

Hammer Wood Crusher

Hammer wood crusher is the most widely used type of wood crusher, which is widely used to crush wood materials to wood chipps. It has a simple structure and good versatility. The hammer and rotor are hinged. After the metal foreign matter enters the wood crusher, it only breaks the sieve and there is no major accident.

Product Details

The hammer wood crusher machine is suitable for crush waste packing boxes, formwork, boards, branches, wooden crates, pallets, corn stalks, logs and other waste wood materials etc.

The structure of hammer wood crusher are composed of three parts, the feeding mechanism, the crushing chamber (rotor, hammer, sieve, and tooth plate), and the discharging part (fan, collecting cylinder, dust collecting bag).

How does Hammer Wood Crusher Work?

When working, the wood pieces enter the crushing room from the feeding mechanism. Under the impact of the high-speed rotary hammer, wood pieces fly toward the tooth plate, and after hitting the tooth plate, they are hit again by the hammer. At the same time, between the screen surface and the hammer, the wood pieces are strongly rubbed, in repeated impact collision and under the action of friction, the wood chips are gradually crushed. For the crusher without a fan, the crushed materials discharge through the mesh holes by the air flow in the crusher chamber.

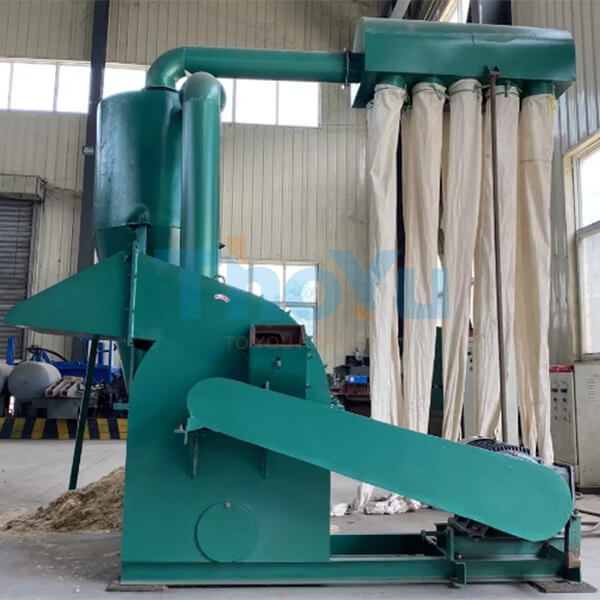

The crusher with a fan, extracts the crushed material from the sieve hole, it is necessary to separate the air in the mixed gas stream from the wood crushed materials through a powder collecting device (such as a collecting cylinder, a dust collecting bag, etc.). And the size of finishing crushed wood materials is mainly adjusted by the diameter of the drying mesh.

Advantages of Hammer Wood Crusher

More powerful function, stable after use, wide material applicability, outstanding function, easy to repair, the crusher also can equip with diesel gasoline engine and wheels, which is a green and low-carbon efficient wood crushing equipment.

Parameters of Hammer Wood Crusher

Model TYFS-600 TYFS-800 TYFS-1000
Feeding conveyor 3kW 3kW 3kW
Hydraulic pump motor 3kW 3kW 3kW
First stage crushing motor 30kW 45kW 55kW
Second stage crushing motor 37kW 55kW 75kW
discharge conveyor 3kW 3kW 3kW
Dust removal fan 7.5kW 11kW 15kW
output(kg/h)

(3mm)

2000 3000-3500 4000-4500
output(kg/h)

(6mm)

4000 6000 8000
Capacity 600-800 kg/h 0.8-1.2 ton/h 1.8- 2.2 ton/h
One set includes 40pcs cutter 48pcs cutter

Dust- remover Cyclone

Induced draft fan

Air-lock

56pcs cutter

Dust- remover Cyclone

Induced draft fan

Air-lock

Weight 800kg 1200kg 2500kg
