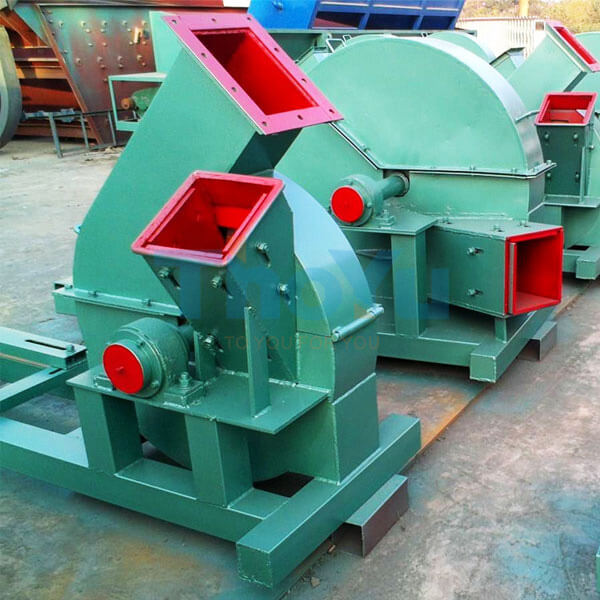

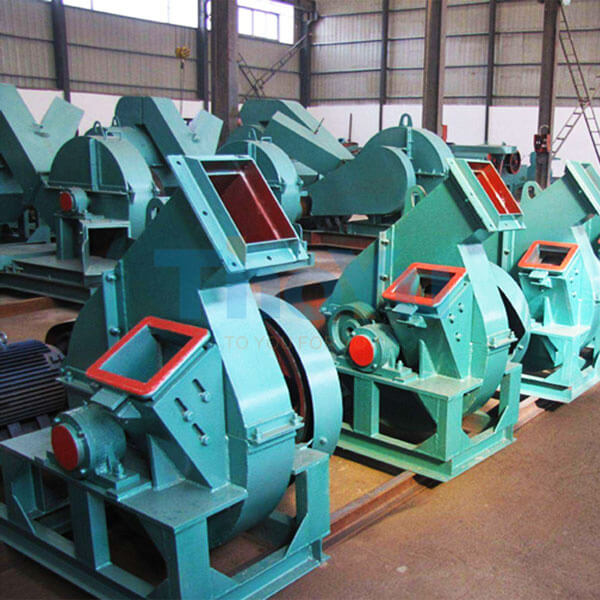

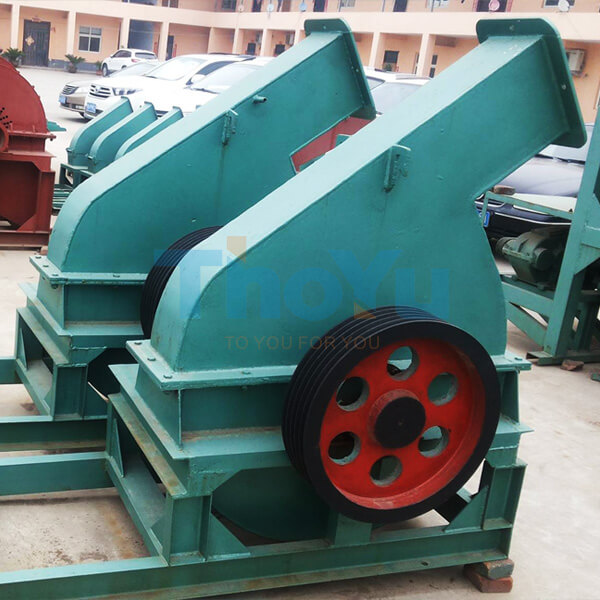

Disk Wood Chipper Machine

The disc type wood chipper machine can cut logs, small diameter wood, etc. into high-quality industrial wood chips with uniform length, flat cuts, and uniform thickness. It can also cut ya wood, boards, etc., suitable for paper mills, particle board factories, fiberboard factories, and wood chip production bases.

Product Details

Disk type wood chipper machine is used for crushing waste wood logs, bamboo shelves, brackets, wood bark pieces, which is preparing raw materials for molded wood pallet and pallet block production.

How Does Disk Type Wood Chipper Work?

Disk type wood chipper machine has simple structure, mainly consists of one large disc with four or six blades. The blades move circularly with the disc. The raw materials enter the cavity from the feeding port and encounter the blades with high speed. Then, the blades chip raw materials continuously. Meantime, the disc produces strong airflow in high-speed rotation, and sent the finished product to the discharge port. After that, the final product is discharging.

Features of Disk Type Wood Chipper

1. Disk type wood chipper adopts low-voltage or high-pressure motor, and large-size wood chipper drives by pulleys drive and direct drive. Wood chipping machine has two feeding types like horizontal type and inclined type. Meantime, there are two ways of discharge, such as the upper discharging and the lower discharging.
2. Disc type wood chipper machine has high output, and the customers can choose their own models according to their needs.
3. Disk type wood chipping machine consists of the machine frame, cutter, feeding inlet, shell, electric control system and other components.
4. The final wood chips are the same length and thickness with uniform. The size of wood chip size is: 15 ~ 20 mm in length, 3 ~ 5 mm in thickness, and the width is less than 20 mm. At the same time, the qualified rate of wood chips is more than 85%. What’s more, the length of wood chips can be adjusted to meet the size of the users’ needs.

Technical Specifications of Disk Type Wood Chipper

Disk Type Wood Chipper Machine
Model TYDX-800 TYDX-1000 TYDX-1200 TYDX-1400
Capacity (t/h) 3-5 4-6 6-8 8-10
Main power (kW) 30 37 45 55-75
Cutter diameter (mm) 800 1000 1200 1400
Feeding port size (mm) 200*200 300*320 330*350 360*370
Max feed diameter (mm) Φ190 Φ290 Φ330 Φ350
Total weight (kg) 1680 2720 3560 4120
Dimensions (mm) 1800*700*1200 2100*1000*1300 2200*1200*1850 2600*1300*1900
