Comprehensive wood crusher is used for scrapping of used pallets, building boards, used doors and windows, packing boxes, furniture and other wooden products, which with nails. The comprehensive wood crusher machine function is more powerful, stable, and reliable, the material has wide applicability, the function is outstanding, the operation and repair are convenient. Also it is a green and low-carbon efficient equipment.
Comprehensive wood crusher is upgraded equipment based on the equipment of the template crusher itself. The device combines the advantages of a template crusher and abandons the shortcomings of the template crusher that cannot crush large pieces of material.
Comprehensive wood crusher machine application
The Comprehensive wood crusher machine is suitable for a variety of materials such as waste containers, templates, plates, branches, wooden crates, pallets, and so on.
The comprehensive wood crushing machine is mainly based on impact energy to complete the crushing of wood operations. When the comprehensive wood crusher works, the motor drives the rotor to rotate at a high speed, and the wood evenly enters the comprehensive wood crusher cavity. The high-speed rotating hammer head impacts, shears, and tears the wood to be broken, under the action of its own gravity, the wood rushes from the high-speed rotating hammer head to the baffle plate and the screen strip in the frame body. In the lower part of the rotor, a sieve plate is provided. The wood less than the mesh size in the crushed wood is discharged through the sieve plate, and the wood larger than the mesh size is retained in the sieve. The board continues to be hit and ground by the hammer.
1. The advantages of comprehensive wood crusher are reasonable design, compact structure, safety, durability and high production efficiency.
2. The feedbacks from our customer is very positive. And the effect of comprehensive wood crusher is good, the noise is small, the structure is simple, the arrangement is compact, the price is cheap, the work is stable, the energy consumption is small, the output is high, and the quality of the crushed product is good, but processing costs are low.
3. A magnetic separation device can be installed at the front end of comprehensive discharge port to effectively filter the content of iron products in the wood material. The iron removal rate is above 95%.

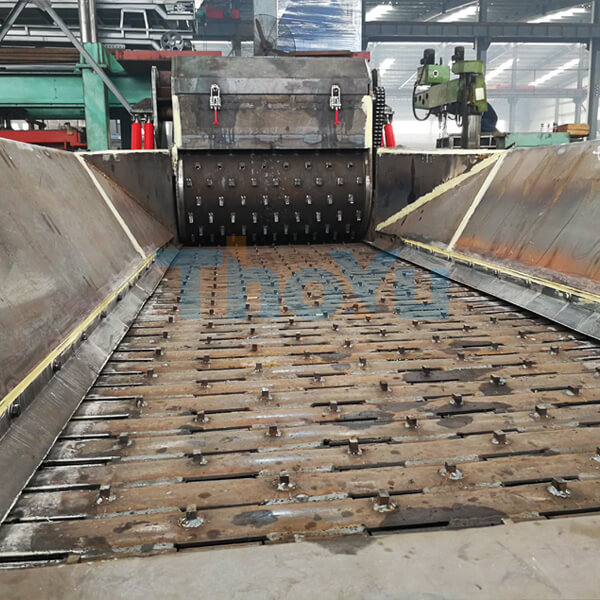

| 1. The device of feeding system | Slot type chain conveyor |
| Model | TYZH-1300-600 |
| Power | 7.5 kW+5.5 kW |
| Width | 1300 mm |
| Conveying length | 5100 mm |
| Velocity | 0-18000 mm/minute |
| 2. Main machine | Comprehensive wood crusher |
| Knife-cylinder Diameter | 800 mm |
| Knife-cylinder Velocity | 540 rpm |
| Capacity | 10-18 tons/hour |
| Cutter material | Fly hammer YG8 alloy material surfacing welding |
| Maximum processing diameter | 340 mm |
| Main power | 160 kW |
| Finished product size | Less than 100 mm |
| 3. Discharging system | |
| Power | 7.5 kW |
| Width of conveyer belt | 1200 mm |
| Materials of conveyer belt | Four layers of nylon |
| Discharge height | 4000 mm |
| Conveying length | 11000 mm |
| 4. Hydraulic system | |
| Oil tank capacity | 120 L |
| Oil pump motor power | 4 kW |
| Note | Electric control system (full set of Schneider electronic components)
Motor all use new Kaiyuan motor |
